R&S®MobileLocator

先进的干扰捕获及发射机定位

R&S®MobileLocator
打开灯箱

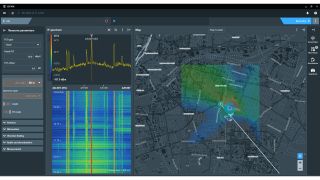

R&S®MobileLocator
打开灯箱
R&S®MobileLocator,前视图R&S®MobileLocator,应用图像

主要特点

  • 经优化适用于城区的干扰捕获(多径传播)
  • 自动定位发射机位置
  • 用户界面直观易用
  • 可快速、轻松地安装在商用车辆上
  • 生成包含所有相关信息的干扰搜索报告

R&S®MobileLocator;

先进的干扰捕获及发射机定位

R&S®MobileLocator 率先实现通过移动测向车辆检测并自动定位发射机。只需几分钟,基于 R&S®PR200 便携式测向机的紧凑型测向系统即可将商用车辆转变为测向平台,适用频率范围为 20 MHz 至 6 GHz。与其他罗德与施瓦茨测向机结合使用时,R&S®MobileLocator 可用于专用测向车辆和直升机。

特性和优点

自动化干扰捕获

追踪发射机

由于高层建筑会反射或遮挡信号,因此车辆需要至少以步速行驶,以便为 R&S®MobileLocator 提供方位信息。R&S®MobileLocator 筛选所有可用的方位信息,保存相关测向结果,并利用统计分析来确定最可能的信号方向和位置。结果会持续更新,并显示在地图上。

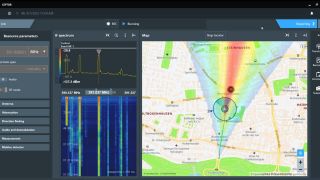

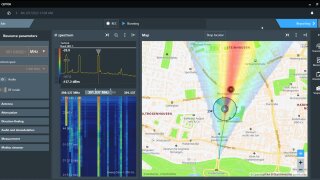

追踪目标
打开灯箱

追踪目标

使用红圈标记精确的干扰源位置

界面易于使用

基于 Web 的图形用户界面和具备指南的工作流

基于 Web 的图形用户界面进行了优化以进行干扰搜索,并能够直接访问所有必要参数。一键获取所有信息和结果,即使在条件恶劣的环境中也能简单操作。

带触摸屏的平板电脑
打开灯箱

带触摸屏的平板电脑

平板电脑上的移动定位器控制图形用户界面

便携式系统

轻松运输和安装

使用 R&S®MobileLocator 自动测向,需要利用配备测向天线的罗德与施瓦茨测向机。对于小型移动系统,推荐使用带测向天线的 R&S®PR200。R&S®MobileLocator 软件安装在笔记本电脑或功能强大的平板电脑中,并通过 LAN 电缆连接至测向机。根据干扰信号情况,使用磁性底座适配器在车顶安装 R&S®ADD107 或 R&S®ADD207 紧凑型测向天线。

车辆中安装的移动定位器
打开灯箱

车辆中安装的移动定位器

安装 R&S®MobileLocator 的商用车辆;随时可用。R&S®PR200 通过笔记本电脑或平板电脑控制。

交钥匙解决方案

简单直观的干扰搜索

由于无线电信号具有强大的多径传播特性,因此在城区手动定位信号既耗时又容易出错。R&S®MobileLocator 针对多径传播进行了优化,能够快速指导用户确定干扰源的位置。

  • 全景扫描可快速概览所有信号活动
  • 信号解调和音频记录
  • 实时带宽中的频谱显示,以进行详尽的信号监测

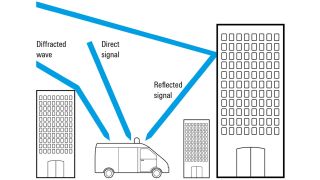

专用于城区环境
打开灯箱

专用于城区环境

城区中的多径传播效应导致车辆从多个方向接收感兴趣的无线电信号
