R&S®AD066FW 宽带甚高频/特高频通信天线系统

118 MHz 至 453 MHz

R&S®AD066FW 宽带甚高频/特高频通信天线系统

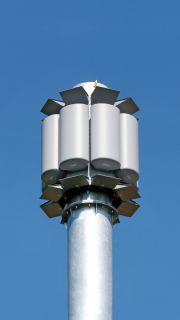

R&S®AD066FW 宽带甚高频/特高频通信天线系统,前视图


  • 宽频率范围
  • 一流的全向性
  • 高输入功率,可同时使用多个无线电线路
  • 天线采用可堆叠设计
  • 专门设计用于在恶劣的环境条件下操作


R&S®AD066FW 全向甚高频/特高频通信天线系统适用于海军应用,可用作发射或接收天线。R&S®AD066FW 包括 R&S®AD066F 宽带甚高频/特高频通信天线、R&S®FT066F 波束成形网络和适用的 R&S®AD066FW-K 电缆组件。偶极子围绕中心支撑结构呈圆形排列并合并到一个输出端,实现一流的全向特性。天线可同时用于多个独立发射机。




R&S®AD066FW 宽带甚高频/特高频通信天线系统覆盖 118 MHz 至 453 MHz 的频率范围。与合适的耦合网络相结合时,天线可以同时处理多个甚高频/特高频收发信号。



R&S®AD066FW 的八个垂直极化偶极子在反射器前面呈圆形排列。各偶极子合并到一个输出端,实现一流的全向性。整个天线围绕中心天线杆进行部署,可实现不间断的全向通信。



R&S®AD066FW 宽带甚高频/特高频通信天线系统旨在提供高输入功率。用户可以将多个独立发射机同时连接到单个天线,与传统设计相比节省了空间。这还可以避免常见的天线间干扰问题。



R&S®AD066FW 设计用作环绕式杆式天线。天线具备一流的全向特性。由于接收路径和发射路径有时会分开,因此还需要使用附加天线。AD066FW 可堆叠,能够轻松安装附加天线。



R&S®AD066FW 采用直流接地,并设计用于在恶劣的环境条件下操作。天线可以承受大风速、剧烈冲击和振动,同时维持极宽的工作温度范围,是海军应用的理想之选。
