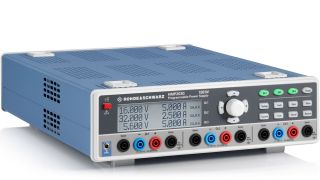

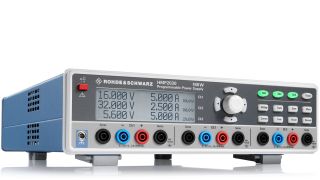

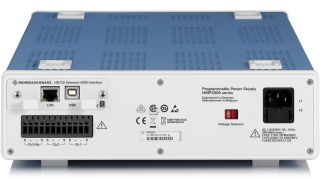

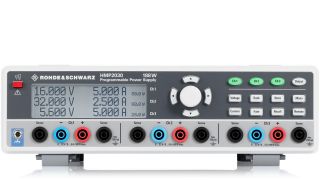

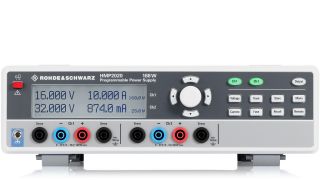

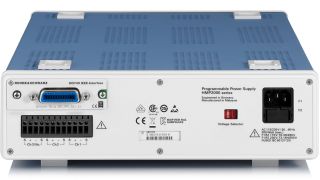

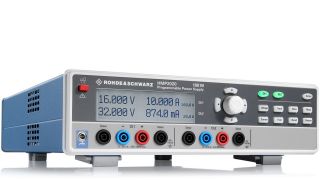

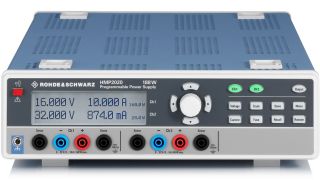

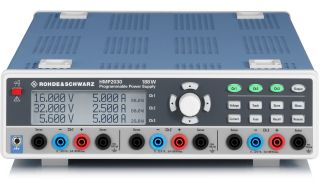

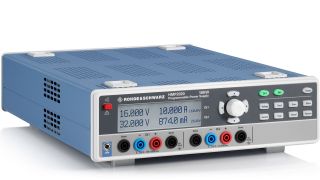

R&S®HMP2000 power supply series, front viewR&S®HMP2000 power supply series, front lowR&S®HMP2000 power supply series, side viewR&S®HMP2000 power supply series, back viewR&S®HMP2000 power supply series, hero viewR&S®HMP2000 power supply series, front viewR&S®HMP2000 power supply series, front lowR&S®HMP2000 power supply series, 3DR&S®HMP2000 power supply series, back viewR&S®HMP2000 power supply series, hero view

主要特点

  • 2 个或 3 个通道,总输出功率最大值为 188 W
  • 每个通道的最大输出电压为 32 V
  • 每个通道的最大输出功率:80 W;R&S®HMP2020 除外(通道 1:160 W)
  • 每个通道的最大输出电流:5 A;R&S®HMP2020 除外(通道 1:10 A)
  • 电子保险丝 (OCP)、过电压保护 (OVP)、过热保护 (OTP)

聚焦 EUR 1,460

单台仪器中最多三个通道

R&S®HMP 直流电源主要设计用于工业用途。这些坚固仪器具有两个或三个输出通道,输出电流高达 10 A,非常适用于广泛的应用。它们可提供高效率、低残余纹波和多种保护功能。

特性和优点

不止满足日常需求

  • 所有通道都采用电位隔离且浮地
  • 所有通道的电压范围都相同
  • 所有通道都具有防过载和防短路保护
  • 并联和串联操作
  • 恒定电压和恒定电流模式
  • 跟踪和链接功能
  • 仪器和被测设备保护功能
  • 现代仪器概念:小巧紧凑、静音运行

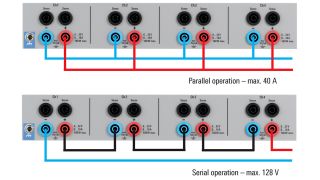

输出通道可通过并联提供更大的输出电流,或通过串联提供更高的输出电压。
打开灯箱

输出通道可通过并联提供更大的输出电流,或通过串联提供更高的输出电压。

便捷的操作

  • 操作直观
  • 操作状态采用颜色编码
  • EasyArb 功能适用于所有通道
  • 保存和调用仪器设置

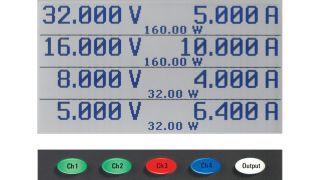

所有设置和操作状态都清晰可见。
打开灯箱

所有设置和操作状态都清晰可见。

非常适用于实验室和测试系统

  • 为实验室应用和系统机架量身定制
  • 远程感应功能可满足更严格的精度要求
  • 前面板和后面板连接
  • 远程控制仪器功能

打开灯箱

可用型號

可用型號
型号
输出通道数
最大输出功率
每个通道的输出电压
每个通道的输出电流
开始时间:

R&S®HMP2020

订单号码 3629.6718.02

输出通道数
2
最大输出功率
188 W
每个通道的输出电压
0 V 至 32 V
每个通道的输出电流
通道 1:10 A;通道 2:5 A
开始时间:
EUR 1,460

R&S®HMP2030

订单号码 3629.6718.03

输出通道数
3
最大输出功率
188 W
每个通道的输出电压
0 V 至 32 V
每个通道的输出电流
5 A
开始时间:
EUR 1,740
规格
电气参数
输出通道数2/3
总输出功率最大 188 W
每个通道的最大输出功率80 W;R&S®HMP2020 除外,通道 1:160 W
每个通道的输出电压0 V 至 32 V
每个通道的最大输出电流5 A;R&S®HMP2020 除外,通道 1:10 A
电压纹波与噪声(20 Hz 至 20 MHz)< 1.5 mV (RMS)(测量值)
电流纹波与噪声(20 Hz 至 20 MHz)< 1 mA (RMS)(测量值)
负载恢复时间(在设置电压的 ±20 mV 范围内,负载变化 10% 至 90%)< 1 ms(测量值)
电压编程分辨率1 mV
电流编程分辨率< 1 A:0.1 mA(10 A 通道:0.2 mA)
 ≥ 1 A:1 mA
输出测量
电压回读分辨率1 mV
电流回读分辨率< 1 A:0.1 mA(10 A 通道:0.2 mA)
 ≥ 1 A:1 mA
电压回读精度 ±(输出的 % + 偏移量)< 0.05% + 5 mV
电流回读精度 ±(输出的 % + 偏移量)< 0.1% + 2 mA
特殊功能
测量功能电压、电流
保护功能OVP、OCP、OTP
FuseLink 功能
开机时保险丝延迟
感应补偿功能
吸收模式-
顺序输出-
触发输入/输出-
任意函数● (EasyArb)
模拟/调制接口-
数据记录-
显示屏和接口
显示屏240 像素 × 64 像素 LCD
后面板连接采用每通道 4 线连接器插头块
远程控制接口:标配USB、LAN
远程控制接口:可选IEEE-488 (GPIB)、RS-232
通用数据
尺寸(宽 × 高 × 深)285 mm × 93 mm × 405 mm
重量7.8 kg/8.0 kg
机架安装R&S®HZ42 选件

可用选项

接口
产品
描述
R&S®HO720

订单号码 3594.3660.02

描述

双接口 (RS-232/USB)

R&S®HO740

订单号码 3622.3194.02

描述

IEEE-488 (GPIB) 接口

R&S®HO732

订单号码 5800.3209.02

描述

以太网/USB 双接口

适用于 HMF、HMO、HMP、HMS 系列

通用附件
产品
描述
R&S®HZ42

订单号码 3622.3207.02

描述

19' 机架适配器,2 HU
