Power analysis 示波器软件

一般分析

Power analysis 示波器软件
打开灯箱
Power analysis oscilloscope software, Software

主要特点

  • 自动设置:用于自动设置所有测量
  • 使用 R&S®RT-ZF20 去偏移夹具实现电流/电压探头的自动去偏移
  • 电源向导:图形向导确保正确连接
  • 报告:可自定义报告
  • 多域图标
  • HD 16 位

示波器软件

R&S®RTx-K31 软件选件提供分析功率电子设备所必需的测量功能,包括浪涌电流、输出频谱以及安全工作区。测量向导包含详细说明,指导用户完成测试设置。示波器可自动配置并快速提供结果。

特性和优点

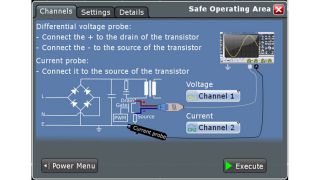

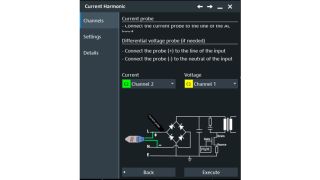

提供测量向导,方便快速获得结果

选择测量功能之后,测量向导将指导用户完成测试设置。详尽的图示说明有助于用户正确连接仪器。之后示波器会自动配置并快速提供结果。用户可以修改配置或完全手动配置示波器,以便记录具体的信号细节。

提供测量向导,方便快速获得结果
打开灯箱

提供测量向导,方便快速获得结果

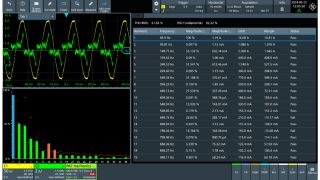

根据 EN、MIL 和 RTCA 标准的谐波电流分析

在开发开关电源的时候,必须满足不同的谐波电流限制标准。R&S®RTO-K31 选件可帮助用户根据所有常规标准进行测试:EN 61000-3-2 A 级、B 级、C 级及 D 级,MIL-STD-1399 以及 RTCA DO-160。

根据 EN、MIL 和 RTCA 标准的谐波电流分析
打开灯箱

根据 EN、MIL 和 RTCA 标准的谐波电流分析

简便清晰地记录测量结果

只需按下按钮,即可将结果添加到测试报告。测试报告中记录了设置和配置。用户可以规定报告的详尽度并自定义报告排版,例如添加公司徽标。可用的输出格式包括 PDF 和 RTF。

简便清晰地记录测量结果
打开灯箱

简便清晰地记录测量结果

可用型號

可用型號
型号
基本单元
R&S®RTO-K31

R&S®RTO-K31

订单号码 1329.7502.02

R&S®RTE-K31

R&S®RTE-K31

订单号码 1326.1278.02

R&S®RTM-K31

R&S®RTM-K31

订单号码 1335.8920.02

R&S®RTA-K31

R&S®RTA-K31

订单号码 1335.7769.02

R&S®RTO6-K31

R&S®RTO6-K31

订单号码 1801.6858.02

基本单元
