R&S®WinIQSIM2™ 模拟软件

符合数字无线电标准的 I/Q 信号生成

R&S®WinIQSIM2™ 模拟软件
打开灯箱
R&S®WinIQSIM2™ 模拟软件
打开灯箱
R&S®WinIQSIM2™ 模拟软件
打开灯箱

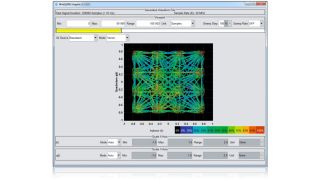

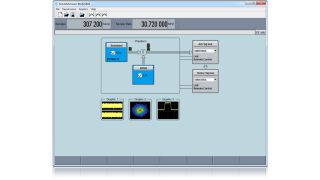

R&S®WinIQSIM2™ 模拟软件,屏幕截图R&S®WinIQSIM2™ 模拟软件,屏幕截图R&S®WinIQSIM2™ 模拟软件,屏幕截图

主要特点

  • 基于电脑的直观软件,用于通用信号生成
  • 支持多种蜂窝和无线连接标准
  • 用于卫星和广播电视应用的信号生成
  • 针对用户定义的信号进行自定义数字调制
  • 支持多种罗德与施瓦茨信号发生器

基于电脑的软件可实现灵活的信号生成

R&S®WinIQSIM2™ 专用于在电脑上轻松生成数字调制信号。
图形用户界面便于创建符合多种可配置数字标准的波形,并生成多载波信号和多段波形,从而实现直观操作。借助这些功能,R&S®WinIQSIM2™ 可适用于多种应用。

特性和优点

支持多种数字标准

R&S®WinIQSIM2™ 支持多种针对移动通信的 TDMA 和 CDMA 标准、主要的 WLAN 标准以及最新的 OFDM 标准,包括 LTE 和 5G NR。
它可以针对卫星导航应用以及 DVB 和 DAB 广播电视标准生成有用信号。

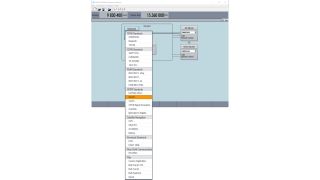

R&S®WinIQSIM2™ 支持的数字标准
打开灯箱

R&S®WinIQSIM2™ 支持的数字标准

R&S®WinIQSIM2™ 附加系统

  • 自定义数字调制以生成用户定义的调制信号
  • 多载波连续波信号生成
  • 将多个数字信号整合成一个多载波波形
  • 借助多段波形功能实现无缝波形序列
  • 生成 AWGN 并添加到信号
  • I/Q 样本导入功能

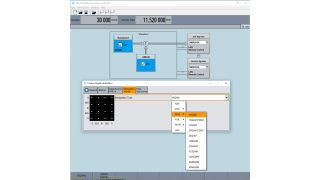

使用 R&S®WinIQSIM2™ 进行自定义数字调制
打开灯箱

使用 R&S®WinIQSIM2™ 进行自定义数字调制

扩展图形

R&S®WinIQSIM2™ 用户界面至多可显示三个独立配置的图形,以便简单验证信号。图形可显示:

  • I/Q 样本与时间
  • 幅度和相位与时间
  • 星座图
  • 频谱
  • 眼图
  • 互补累积分布函数 (CCDF)

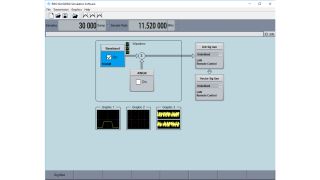

具有三个激活图形的 WinIQSim2
打开灯箱

具有三个激活图形的 WinIQSim2

便于连接

R&S®WinIQSIM2™ 生成的波形可以通过 GPIB、USB 或 LAN 直接传输到支持的信号发生器。波形也可以本地存储在电脑上,之后用 U 盘进行传输。
可以通过 LAN 使用远程桌面连接控制仪器。

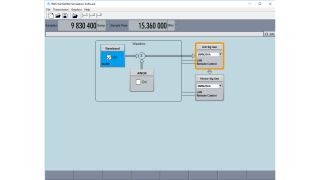

连接至 SMW200A 以传输波形
打开灯箱

连接至 SMW200A 以传输波形
